SN74LVTH244APW

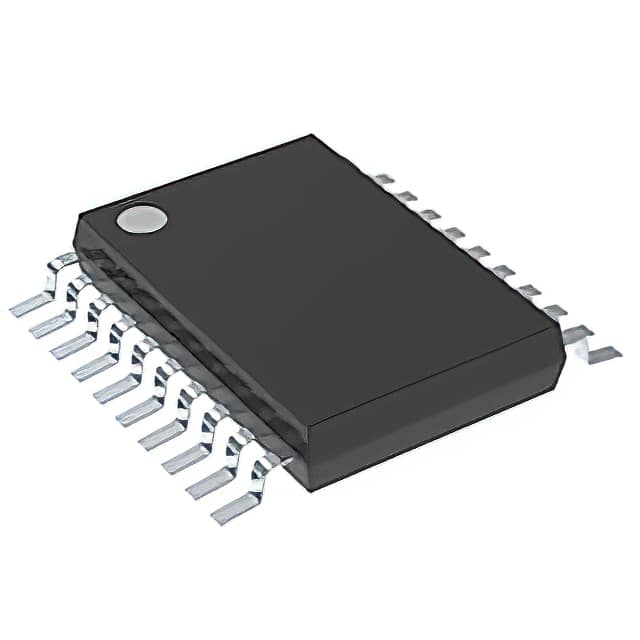

Title: Overview of SN74LVTH244APW Integrated Circuits: Features, Functions, and Application Scenarios Are you looking for an advanced electronic component that offers unmatched performance and reliability? The SN74LVTH244APW Integrated Circuit could be what you need. As one of the high-quality logic buffers, drivers, and receivers in the market, it comes with impressive features and performance parameters that make it ideal for a wide range of electronic devices and industries. In this article, we will explore the main features, application scenarios, and usage of the SN74LVTH244APW Integrated Circuit. We will also delve into the manufacturing process and highlight the different types of integrated circuits in the market. Main Features and Performance Parameters At its core, the SN74LVTH244APW Integrated Circuit is a non-inverting buffer and line driver. It boasts of a maximum output current of 32mA, a typical propagation delay of 3.7ns, and a supply voltage range of 2.7V to 3.6V. The IC also features a ±6mA output drive at 3.3V, making it ideal for high-speed digital and memory interfaces. In terms of accuracy and efficiency, the SN74LVTH244APW Integrated Circuit delivers impressive results. Its output has a typical voltage of 3.3V, with a maximum low-level output voltage of 0.5V and a maximum high-level output voltage of 2.4V. The IC also operates within an extended temperature range of -40°C to 85°C, making it suitable for industrial and automotive applications. Application Scenarios and Usage The SN74LVTH244APW Integrated Circuit is a versatile electronic component that can be used across several industries and applications. Some of the specific scenarios where it can be useful include: - Computer peripherals such as printers, scanners, and hard drives - Communication systems such as routers and switches - Industrial automation systems such as motor control and power supply - Consumer electronics such as gaming consoles and smartphones The IC can also be used as a level shifter, owing to its bi-directional functionality that allows for simple voltage translation between different logic levels. Types of Integrated Circuits Integrated Circuits come in different types with varying features and functionalities. The types of ICs include digital, analog, mixed-signal, and radio frequency (RF) circuits. Digital circuits are used in digital systems and are designed to process binary signals. Analog circuits, on the other hand, process continuous signals such as voltage and current. Mixed-signal circuits combine both analog and digital circuits and are commonly used in sensors, data converters, and data acquisition systems. RF circuits, on the other hand, operate in the radio frequency spectrum and are used in wireless communication systems. Manufacturing Process To achieve a high-quality SN74LVTH244APW Integrated Circuit, a complex manufacturing process is followed. This process includes chip design, cutting, cleaning, laser processing, back grinding, doping, exposure, vapor deposition, etching, and more. After manufacturing, the IC is tested to ensure that it meets the required specifications. Packaging and Testing To ensure that finished products meet the required quality standards, they are appropriately packaged and tested. The SN74LVTH244APW IC is available in a 20-TSSOP package that provides easy and safe handling during transportation, storage, and assembly. Before shipment, the IC is also tested to ensure that it meets strict regulatory and industry standards. Conclusion As we have seen, the SN74LVTH244APW Integrated Circuit is a reliable and versatile electronic component that meets the demands of various industries and applications. Its impressive performance parameters, application scenarios, and usage make it ideal for digital systems, communication systems, industrial automation, and consumer electronics. As you choose an IC, whether for a specific application or as part of your design, be sure to consider the important factors that determine its quality and reliability.
